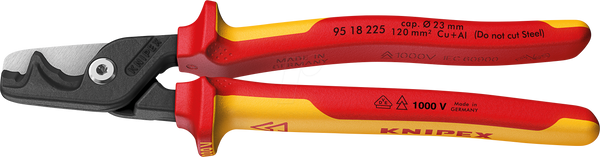

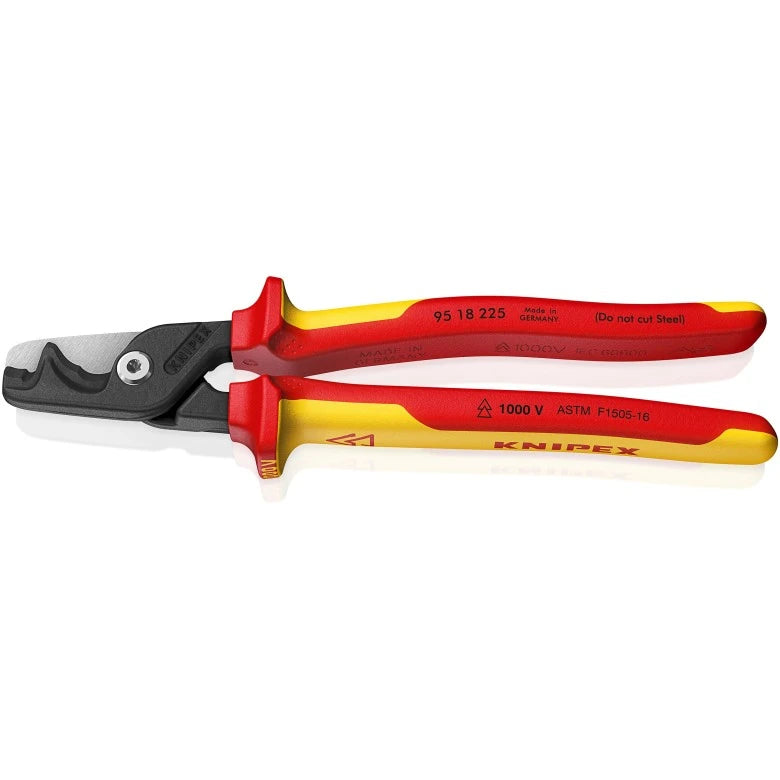

Knipex StepCut XL Cable Shears 1000V VDE

• Product: Knipex StepCut XL Cable Shears 1000V VDE

• Target Trade: Master Electricians, HV Technicians, Commercial Sparkies

• Core Innovation: Dual cutting areas with a stepped edge that holds up to 120mm² fine stranded cables close to the joint, drastically reducing physical hand force while delivering a smooth, crush-free cut.

• Best high-leverage 1000V VDE cable shears for cutting thick copper and aluminum wires with one-handed operation.

The Bottom Line: The Knipex StepCut XL VDE Cable Shears deliver clean, crush-free cuts on massive electrical cables up to 120mm², utilizing an innovative stepped cutting geometry to drastically reduce physical exertion.

The Pro's Equation: Uncompromised Safety & Extreme Leverage Standard compact shears struggle and deform under the load of thick stranded cables, leaving jagged edges that ruin terminations. The Knipex StepCut XL neutralizes this mechanical failure completely. Engineered with an innovative dual cutting area, the stepped edge forcefully holds both small and massive cables tightly against the high-leverage joint. This intelligent blade geometry, combined with laser-hardened 56 HRC edges, allows the front profile to slice through large diameters step-by-step without crushing the internal copper or aluminum conductors.

In high-voltage commercial electrical work, wrestling with heavy-gauge cables destroys your wrist joints and severely slows down the termination process. The StepCut XL operates with an incredibly low handle opening, enabling seamless one- or two-handed operation even on thick 70mm² stranded wires. Fully VDE 1000V insulated, this drop-forged safety asset is a tax-deductible investment that eliminates extreme hand fatigue, ensures immediate zero-rework terminations, and protects your life on live commercial sites.

Why Pros Choose the Knipex StepCut XL:

• Stepped Edge Technology: Dual cutting areas hold cables close to the joint, magnifying leverage and preventing the cable from slipping out.

• Massive Cutting Capacity: Effortlessly slices solid copper/aluminum up to 35mm², stranded up to 70mm², and fine-stranded up to 120mm².

• Ergonomic Handle Opening: Designed to maintain a minimum handle opening width, allowing for comfortable one-handed use on large cables.

• VDE 1000V Certified: Tested and certified to the highest electrical safety standards for high-voltage commercial environments.

• Clean, Crush-Free Cuts: Precision laser-hardened edges (56 HRC) ensure the conductor profile remains perfectly round for immediate termination.

Can I use the StepCut XL on steel-reinforced cables or ACSR? No. These high-leverage shears are explicitly engineered with precision, laser-hardened edges (56 HRC) designed exclusively for cutting soft copper and aluminum. Attempting to cut steel wire or ACSR will instantly cause severe damage and chip the cutting blades.

How does the "step cut" design actually make cutting thick cables easier? The stepped cutting edge is a mechanical advantage system. It prevents the cable from slipping away and forces it to stay extremely close to the high-leverage bolted joint during the cut. This maximizes your physical force, allowing you to slice through thick 70mm² stranded cables with significantly less effort than standard compact shears.

Is the handle opening too wide for one-handed operation on large cables? No. The StepCut XL is specifically designed to maintain a minimum handle opening width even when tackling massive cable diameters. This highly ergonomic design ensures you can comfortably and safely operate the tool with one hand, without overextending your grip.
